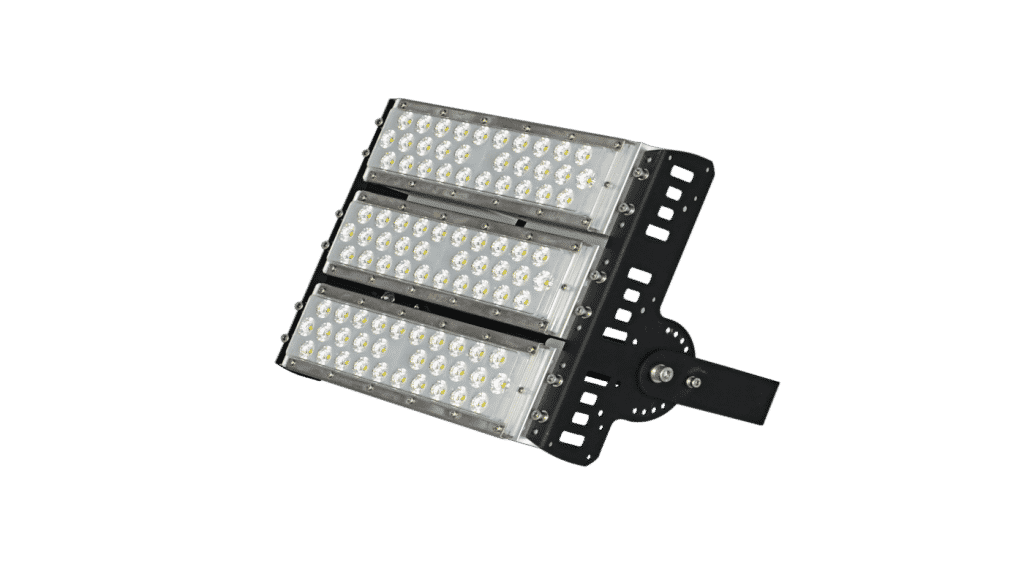

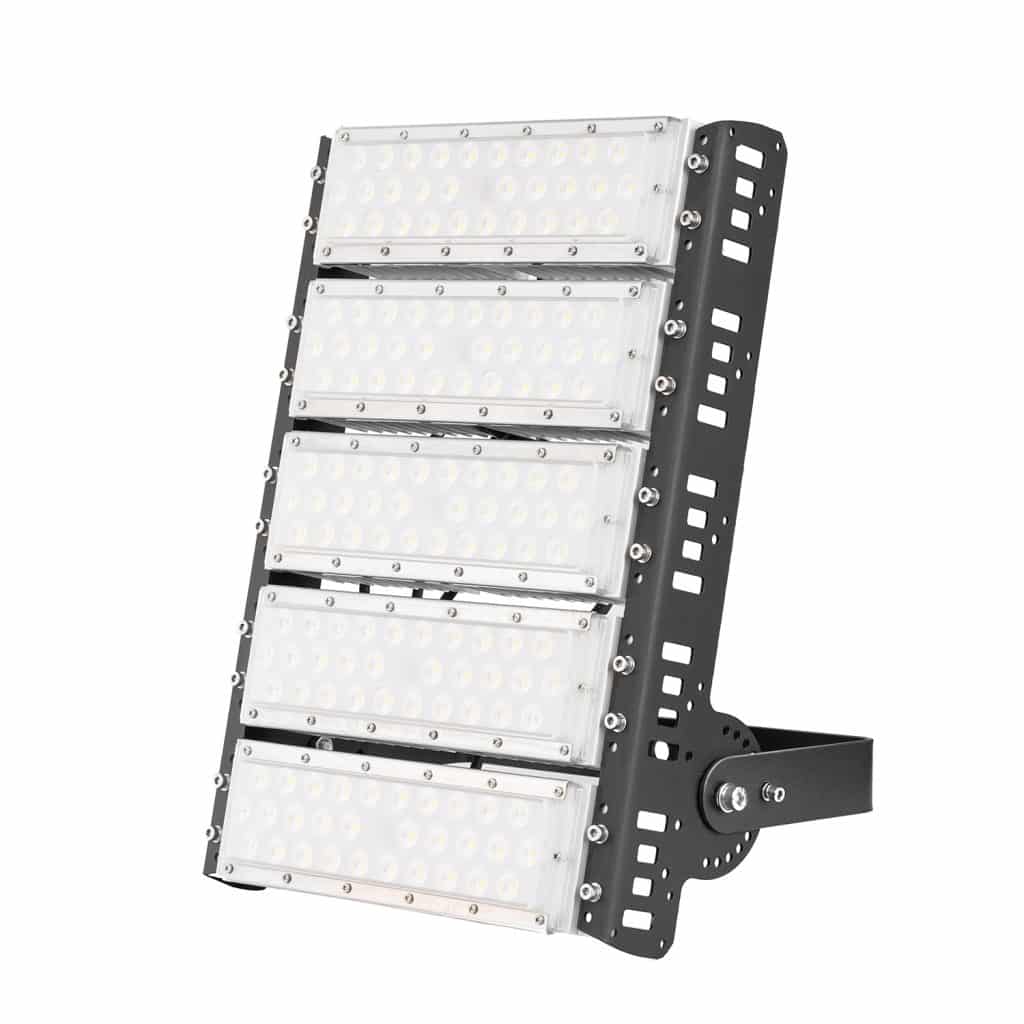

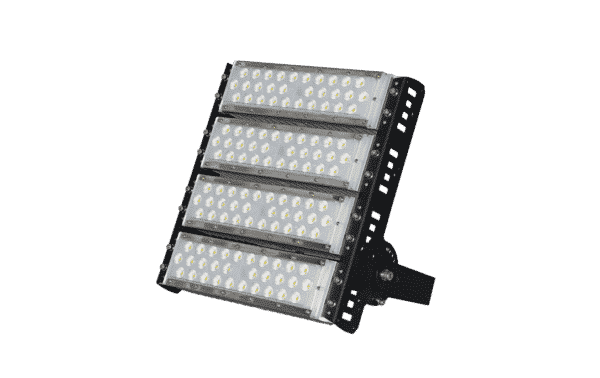

Modular Flood Lighting

LED WALL PACK (3) Linear High Bay Gen IV 4

Features:

  • Modular light source and industrial PC Lens.  Compared with similar products,the luminous efficiency can rise 8% and light transmittance up to 98% with said lens.
  • Easily customize to add to or take away light sources.

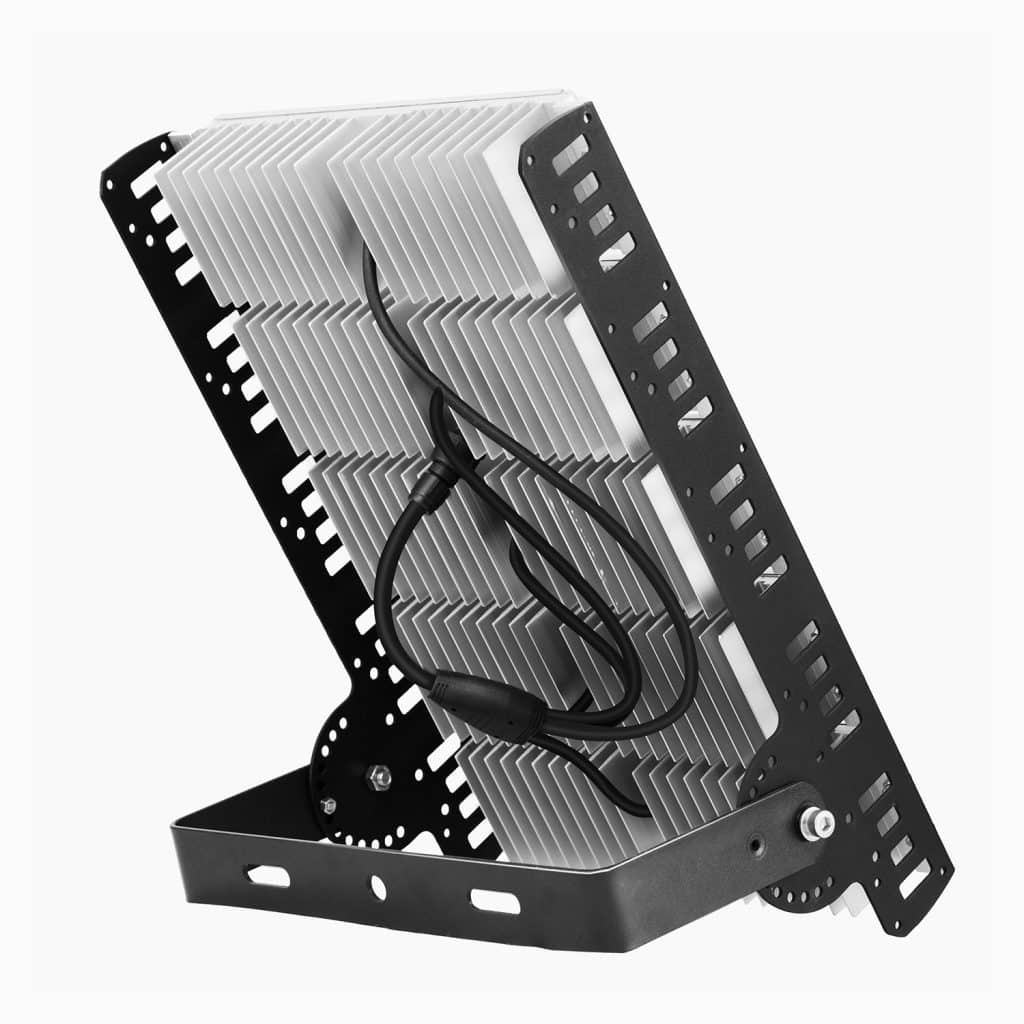

  • A specific channel thermal design to reduce lamp weight, with excellent heat dissipation, reduce light decay, prolong lamp lifetime. CHEM modular design, effectively reduce maintenance costs.
  • Driven by high efficiency constant current with 60% energy-saving than traditional lamps; over –current protection, over-voltage protection, lightning protection, high temperature protection, fully ensures a long life span and high stability.

Application:

DOWNLOAD SPEC SHEET

Tunnel, Factory, Stadium, Warehouse, Auditorium, etc.



SKU: JDR328 Category:

Description

LED Source : Bridgelux5050
CCT : 2700-6500K
PF :≥0.95
Input Voltage: AC100-277V / 50-60HZ OR 200 – 480V
IP Rate : IP65
Environment Temperature : -20°C~50°C
Storage Temperature : -40°C~70°C
Working Life : ≥100,000 hrs
CRI: >78
Lamp Body : Alumlnum alloy lamp body extrusion/surface coated for high temperature
conductance
Lens Material : PC lens

Additional information

LED Color

3000K, 4000K, 5000K
Wattage

150W, 200W, 250W, 300W, 400W, 500W
