Floating Curved LED Troffer | CCT & Wattage Selectable | DLC Premium

Description

The Future of Recessed Lighting: Elegance Meets Efficiency

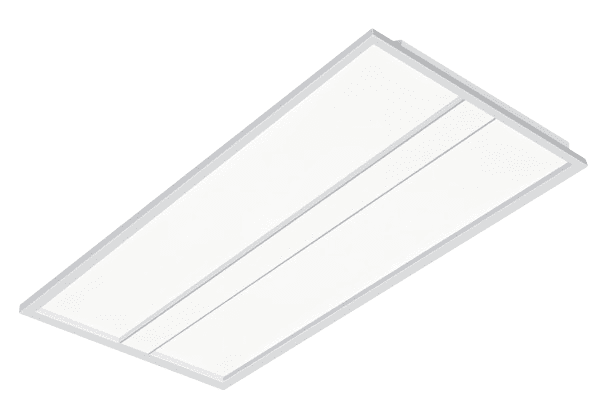

Introducing the OKT Floating Curved LED Troffer, a sophisticated and high-performance lighting solution designed to redefine commercial and architectural spaces. This luminaire transcends the limitations of traditional fixtures, delivering an unprecedented combination of aesthetic uniformity and functional flexibility. Its compact yet sturdy design and unique curved aesthetic are engineered to seamlessly blend into modern architectural spaces, providing a superior, clean look.

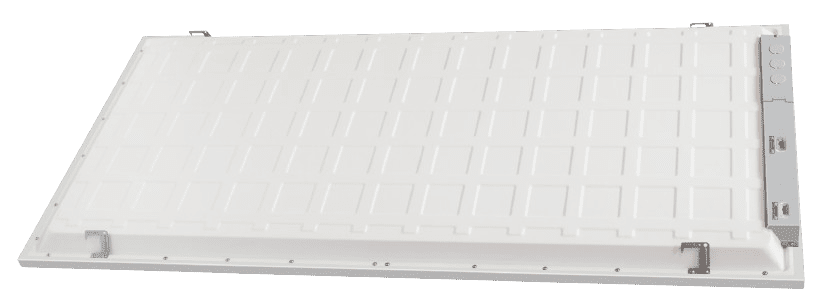

The design is centered on a compact yet sturdy extruded aluminum construction with a clean, low-profile form factor. Its unique “floating curved” aesthetic and white powder-coat finish are engineered to seamlessly blend into modern architectural spaces, providing a superior, clean look. This low-profile design is particularly ideal for buildings with a low plenum space, making installation straightforward and versatile across a wide range of properties.



Ultimate Performance with Field-Selectable Flexibility



The OKT Floating Curved Troffer is built with advanced back-lit LED technology to provide uniform, soft, and comfortable illumination. Its key advantage is the built-in field adjustability, which significantly reduces inventory complexity and provides facility managers and contractors with unmatched on-site flexibility.



CCT & Wattage Selectable



• Color Temperature (CCT) Adjustable: Tailor the ambiance to the specific environment by selecting from three standard color temperatures: 3500K (Neutral White), 4000K (Cool White), and 5000K (Daylight). The CCT can be easily adjusted via a switch on the housing.
• Wattage Selectable: Optimize energy usage and light levels instantly. The fixture allows for a choice of three different wattage levels, ensuring maximum efficacy and lumen output for any space. For example, the 2’x4′ model can be set to 30W, 40W, or 50W, delivering up to 6200 lumens.
• High Efficacy: Achieve superior energy savings with efficacy levels up to 125 lumens per watt (lm/W) for DLC Premium models. The high-efficiency Class 2 LED driver is designed to reduce power consumption while maintaining a high Color Rendering Index (CRI) of 80+ for accurate color perception.



Simplified Installation and Robust Safety Features

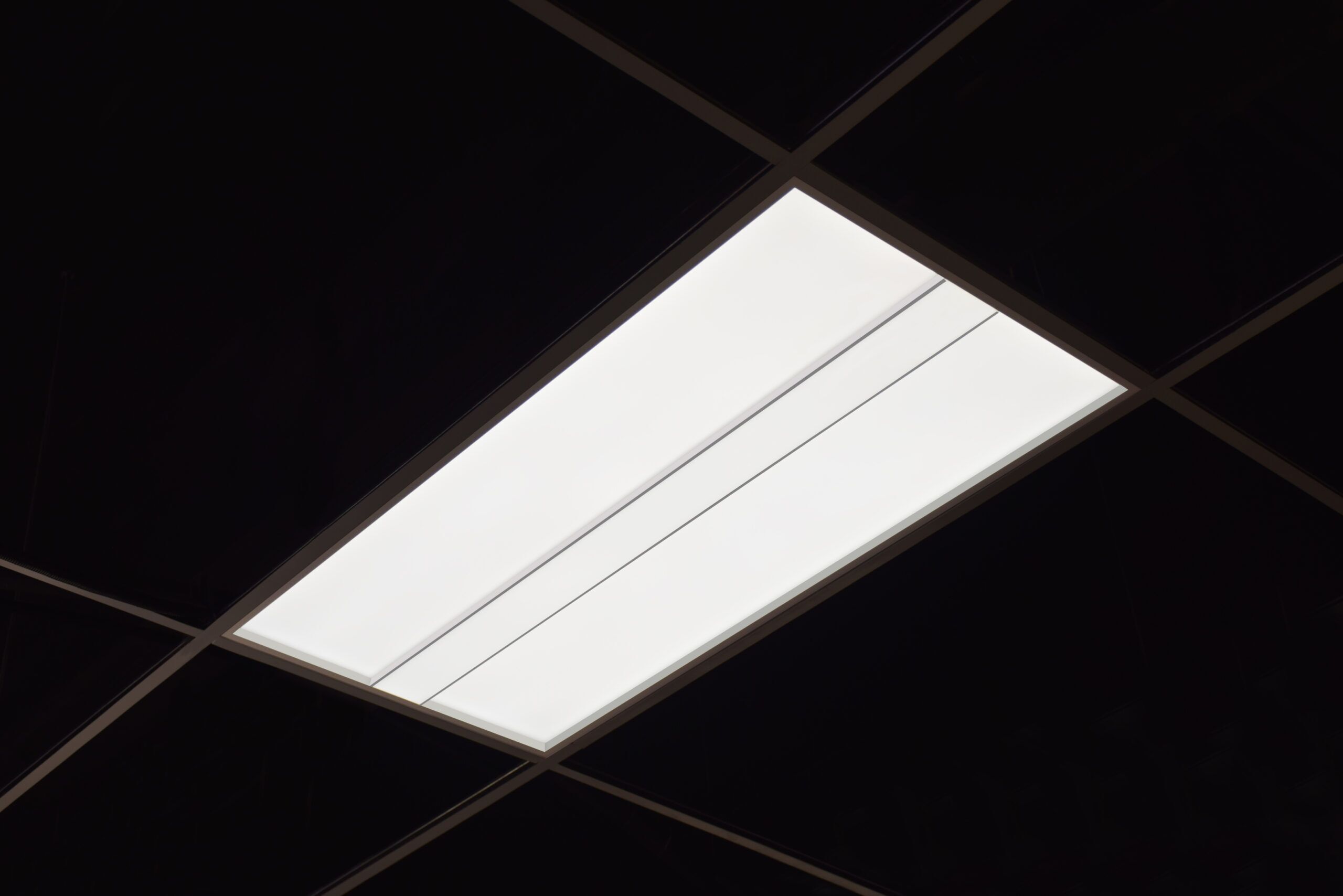

Installation is designed for speed and simplicity. The recessed fixture is compatible with all standard T-grid ceiling systems, including both 15/16-inch and 9/16-inch flat and slot T-grid systems. This universal compatibility makes it the ideal choice for retrofitting existing facilities or installing in new construction across standard 2’x2′, 1’x4′, and 2’x4′ ceiling grids. Standard dimming is provided via a 0-10V continuous dimming driver, allowing the light level to be smoothly adjusted down to 10%.

For enhanced life safety, an optional integrated or external LED emergency driver is available. The built-in emergency option provides critical illumination for 90 minutes or more when normal AC power fails. This option includes a self-test feature, automatically performing a 3-second functional test every 30 days to check wiring and battery output, ensuring continuous compliance with safety codes. The fixture’s robust thermal management, with the aluminum housing acting as a heat sink, ensures a long-rated life of over 50,000 hours, even in ambient temperatures ranging from -20°C to 40°C (Damp Rated).



Approvals and Applications



The OKT Floating Curved Troffer is cULus listed for damp locations, tested to IESNA LM-79 and LM-80 standards, and is DesignLights Consortium (DLC) Qualified for both Standard and Premium categories, making it eligible for utility rebates.

This superior lighting solution is perfect for a variety of commercial and institutional environments that demand both high-quality illumination and modern aesthetics. Ideal applications include:

• Open and private offices
• Classrooms and educational facilities
• Retail stores and commercial spaces
• Healthcare facilities and patient rooms

Elevate your space with a luminaire that offers architectural appeal, unparalleled flexibility, and proven energy performance. The OKT Floating Curved Troffer is the smart, sustainable choice for sophisticated commercial lighting.
