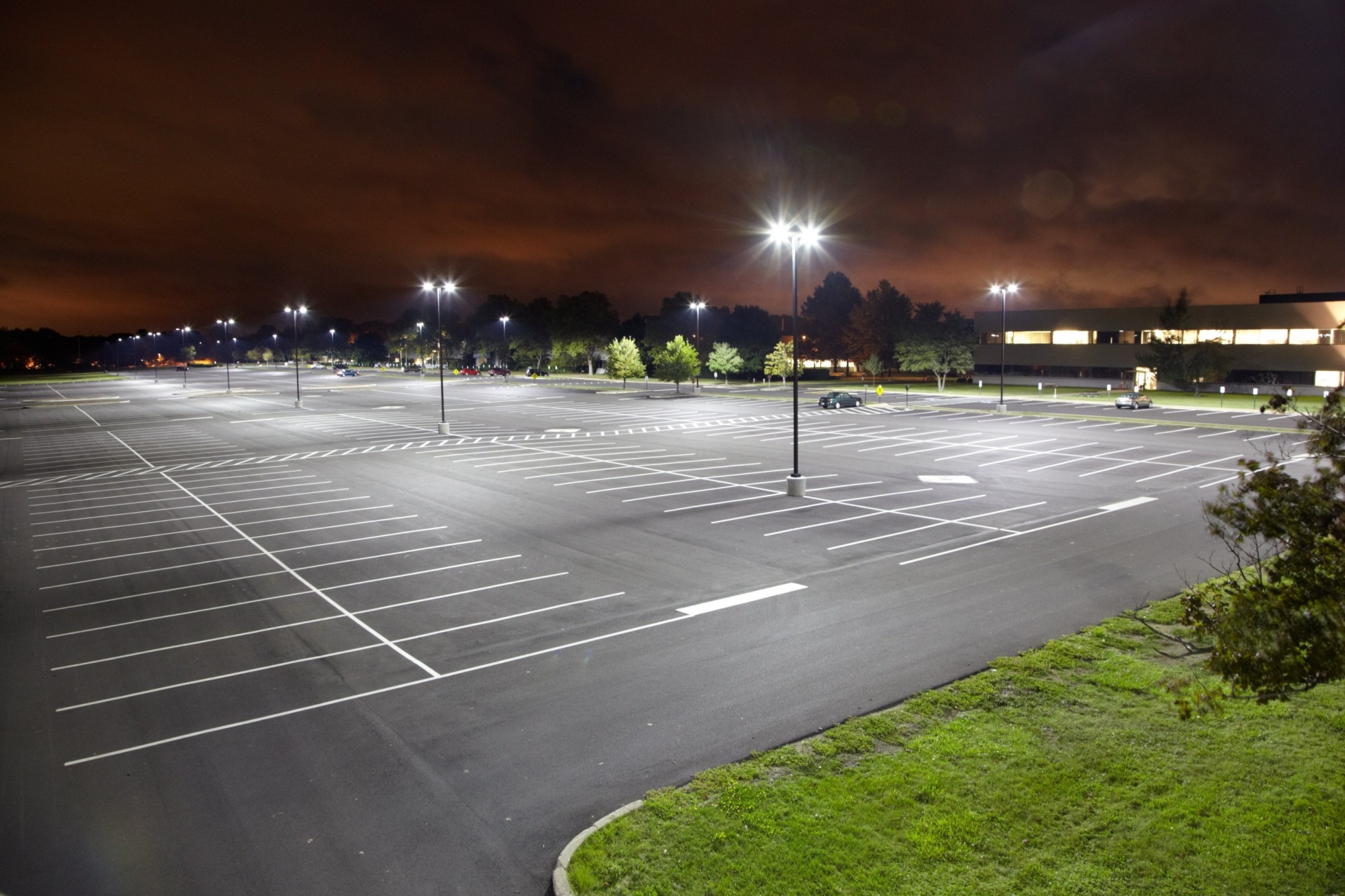

Area Light Applications

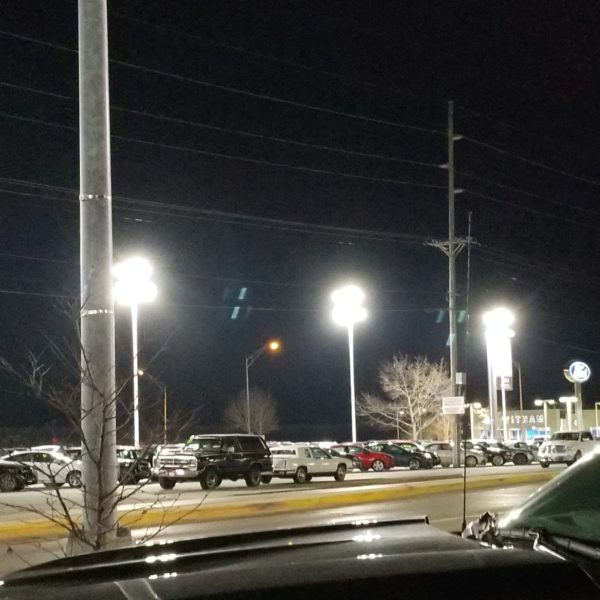

Car Lot Lighting

*NEW* Vietnam LED Area Light

LED WALL PACK (3)

Features:

  • Vietnam Supply saves 25% on Tariffs!
  • High quality ADC12 die casting aluminum heat sink, hollow out fins design provide excellent heat dissipation
  • Multiple Beam Angles Available
  • All Types of Mounting Options Available

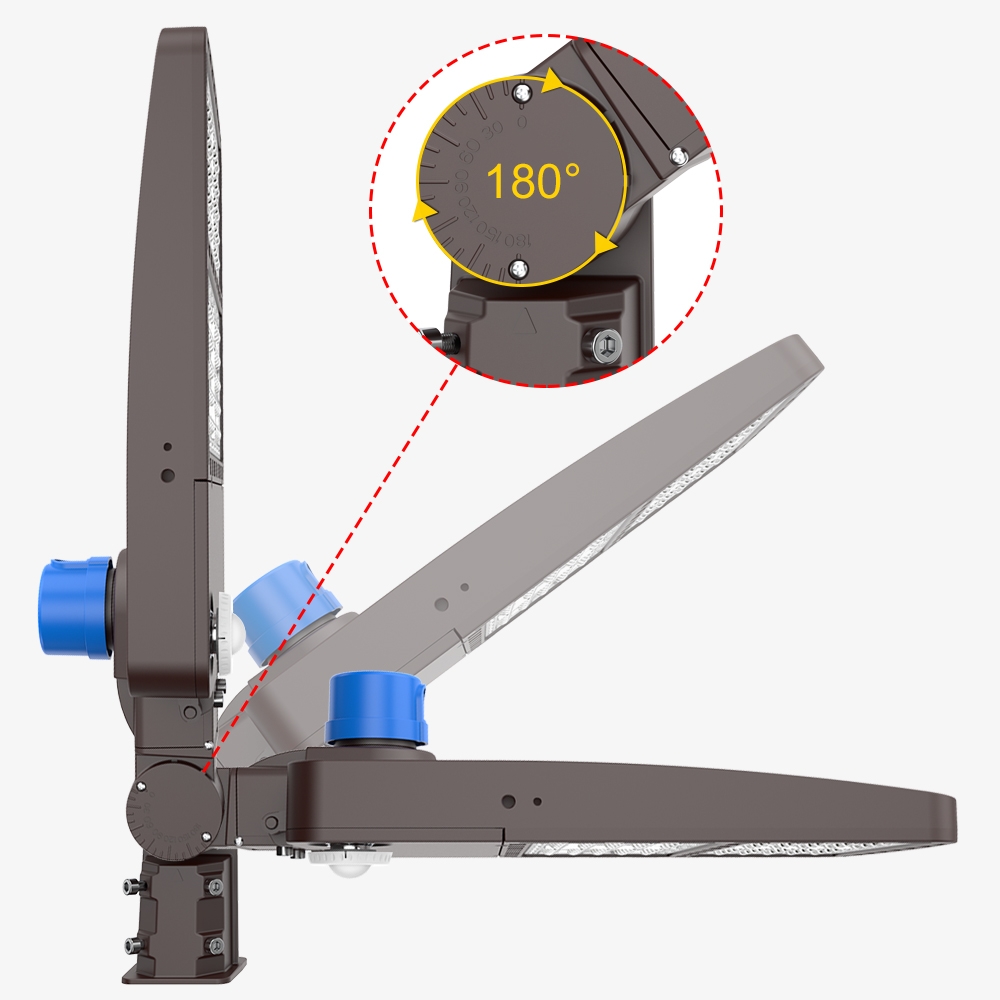

  • 180° Range of motion on mounts
  • Photocell/motion sensor control and surge protector options available

Application:

  • Major Roadway, Residential Streets, Pedestrian Walkways, Expressway.
  • Parking Lot, Docks and Piers
  • Tennis Courts, Volley Ball Courts
  • Industrial plants
  • Flood Lighting Applications

DOWNLOAD SPEC SHEET



SKU: JDR257 Category:


Notice: Trying to access array offset on value of type bool in /home/brilledl/public_html/wp-content/plugins/woocommerce-catalog-enquiry/classes/class-woocommerce-catalog-enquiry-frontend.php on line 478

Description

LED Source : SMD 2835/3030
CCT : 2700-5700K
PF : ≥0.9
Input Voltage: AC100-277V / 50-60HZ OR 200 – 480V
IP Rate : IP66
Environment Temperature : -20°C~50°C
Storage Temperature : -40°C~70°C
Working Life : ≥100,000 hrs
CRI: > 70
Cover Material : PC Lens
Sensors: Photo Cell and PIR Sensor Options
Beam Angles: Type II, III, IV, V Available
Mounting: ≥ Slip Fitter, Direct Arm Mount, and Trunnion Mounts Available
Warranty: > Standard 5-Year (10-Year Available)

Additional information

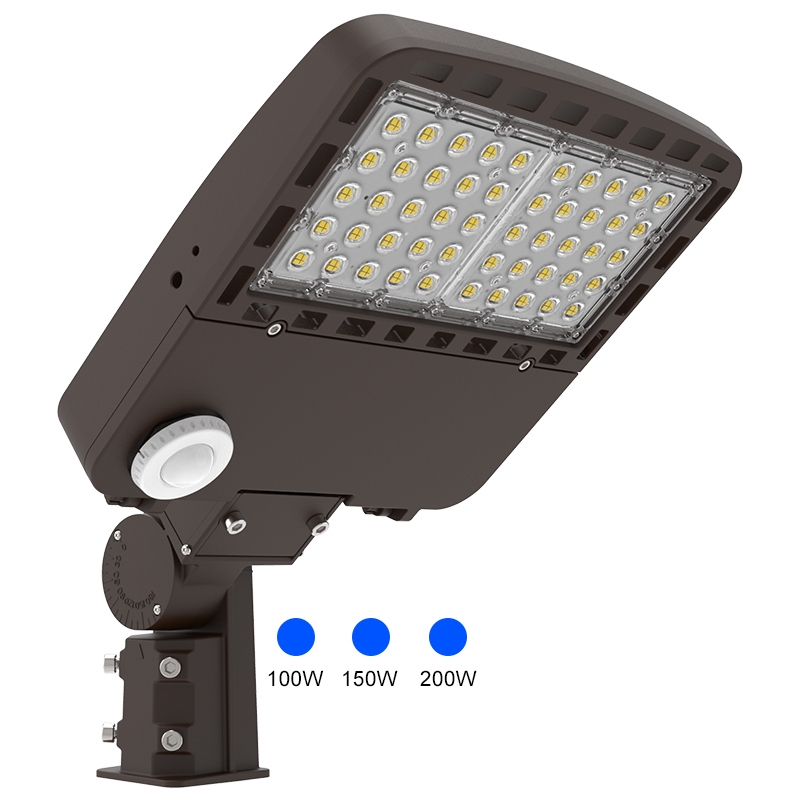

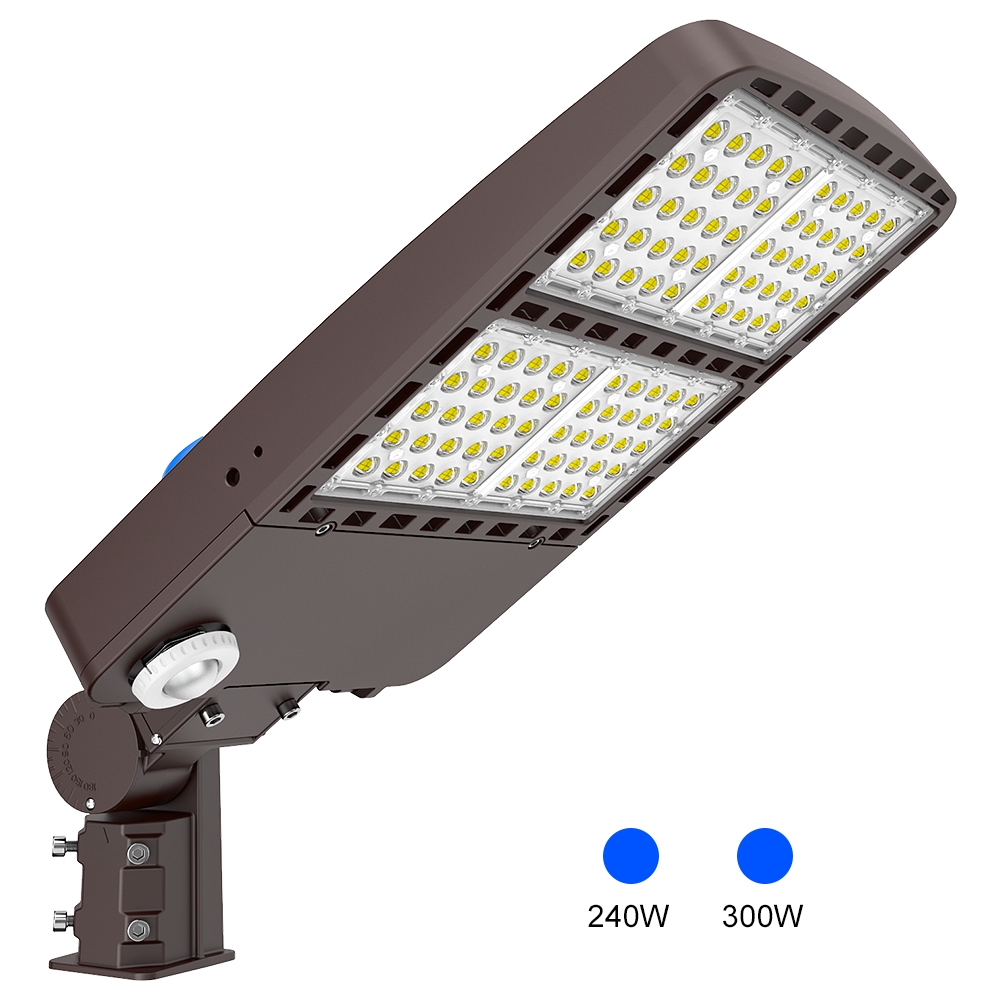

Wattage

100W, 150W, 200W, 240W, 300W
LED Color

3000k, 4000K, 5000K

LED Roadway Lighting

Download

Brilled Lighting Roadway Light is a perfect addition to any high traffic area needing good, reliable, vibrant illumination. With tried and tested components and top of the line electronics, you can feel confident with Brilled Lighting's Roadway LED.
